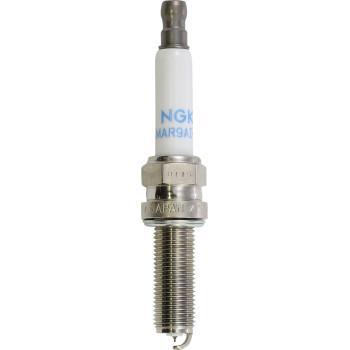

NGK Laser Iridium Spark Plug 90526 - LMAR9AI-8D

  • Sale
  • Regular price $18.95
Shipping calculated at checkout.


  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage


Product Name Spark Plug
Type Resistor Type
Style LMAR9AI-8
Model Laser Iridium
Terminal Configuration Solid Terminal
Center Electrode Projection Projected
Electrode Tip Material Iridium
Center Electrode Type Fine Wire
Ground Electrode Configuration Single
Ground Electrode Shape Standard
Thread Reach 26.5 mm / 1-1/32"
Hex Size 14 mm / 9/16"
Heat Range 9
Spark Gap 0.8 mm / 0.031"
Electrical Resistance 5k Ohms
Units Each
Riding Style Street
